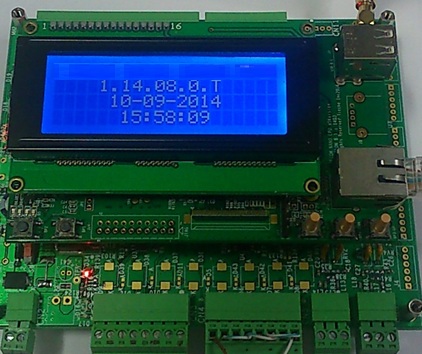

Automation Master Controller (nano version)

It is an ARM9 Linux based Web enabled process controller with all Industrial standard inputs and outputs.

Application Areas :

Industrial Controller
- Monitors all the industrial standard sensors.
- Controls all the industrial standard pneumatic/controlling devices.
Building/Home automation controller
- Monitors all the building automation sensors.
- Controls all the building automation pneumatic/controlling devices.
Process controller
- Monitors all the industrial standard sensors.
- Controls all the industrial standard pneumatic/controlling devices.
Other Applications
- Gate way for Security solutions (Having RS485 /Ethernetinterface)
- Data Concentrator Unit (Having RS485 /Ethernet interface)
- Master for any mini controllers(Having RS485 /Ethernetinterface)
- Web server for any mini controllers(Having RS485/Ethernet interface)
- Real Time monitoring System(Having RS485 /Ethernet interface)
Wireless controller

Communication Interfaces : Wireless, UART and SPI Memory Interface : EEPROM.

Zigbee switches/sensors (wireless)

Connectivity Options
- Zigbee switches/sensors (wireless)
- Ethernet ( 100 Base T)
- RS485 ( Full Duplex/Half Duplex)
- RS232 ( Upto 115200 baud rate)
- USB (Host)
Access Controller

It is an access controller based on wiegand interface.
Communication interface : Wiegand, UART
This is designed and developed for access control requirement for Industrial automation requirements.
Temperature controller

It is precise deep freezer controller used in medical application
Mircocontroller : AM3359 (500 MHz)
OS : ANDROID
Communication Interfaces : Wireless Ethernet, USB, UART I/O : RTF, Analog Inputs, Digital IO
Automation controller

Web Enabled Industrial Automation controller
Genral Purpose controller intented to use for monitoring and control of environmental parameters
OS : Linux
Communication Interfaces : GPRS, Bluetooth, Wireless Ethernet, USB, UART I/O : RTF, Analog Inputs, Digital IO

Features
- Inbuilt Web pages
- LCD Display
- Emergency Reset
- System Reset
- User friendly web user interface
- Password protected accessing
- Alarm notifications through mails
- XML data handling
- SNMP protocol support
- Open loop and closed loop control logics
- PLC model logic implementation
- P, PI, PID control algorithms
- MODBUS master communication (Option)
- Wireless( zigbee ) based module (Option)
- Modularised design
- Compatible for Industrial environment
- Single Voltage Supply input (12V DC)
- 10/100 Base T Ethernet interface
- Data logging/Event monitoring
- Multi accessibility
- Accessible using internet
- Password protected user accessibility
- Default configuration setting retrieval
- Emergency shutdown feature
- 10 bit resolution inputs and outputs
- Dip Switch selectable Industrial
- standard Inputs/outputs
- USB host interface
